The Lakeview | 1-Bedroom, Single-Story Duplex Home Plan
About This Project
- Custom Home
- One Story
- 48'-0" x 26'-8"
- 627 ea, 1,254 total
- Height: 16'-6"
- 1 Bed ea.
- 1 Bath ea.
- None
- LUtility Room
Plan Examples
The Newleaf is a thoughtfully designed, 1-Bedroom, Single-Story Duplex Home Plan,. There is 1-bath in each and (627 sq. ft. each). Perfect for rental properties, flat lots, and energy-efficient builds., perfect for build-to-rent developments, investment properties, or efficient multi-family living. Each 627 sq. ft. unit features a spacious one-bedroom, one-bathroom layout with an open-concept design for modern living.
The large kitchen comes fully equipped with a refrigerator, range, microwave, dishwasher, and a peninsula with an eating bar—ideal for casual dining and entertaining. The cozy living room provides space for a sofa and media area, with direct access to the outdoors through a private exterior door.
Designed to maximize privacy and functionality on a flat lot, this duplex features a compact entry stoop, a hallway with a stacked washer and dryer, and energy-efficient construction that meets the latest building codes.
Whether you’re developing an infill lot or creating a small rental community, the Newleaf Duplex offers all the essentials of a starter home, with timeless Craftsman-inspired curb appealThe Sandstone | Duplex House Plan with Stacked Units and a smart, space-saving layout.
Features:
✔️ Two 1-bedroom, 1-bath units (627 sq. ft. each)
✔️ Energy-efficient design with modern building codes
✔️ Full kitchen with appliances and eating bar
✔️ In-unit laundry with stacked washer/dryer
✔️ Ideal for property line-tight lots or multi-unit developments

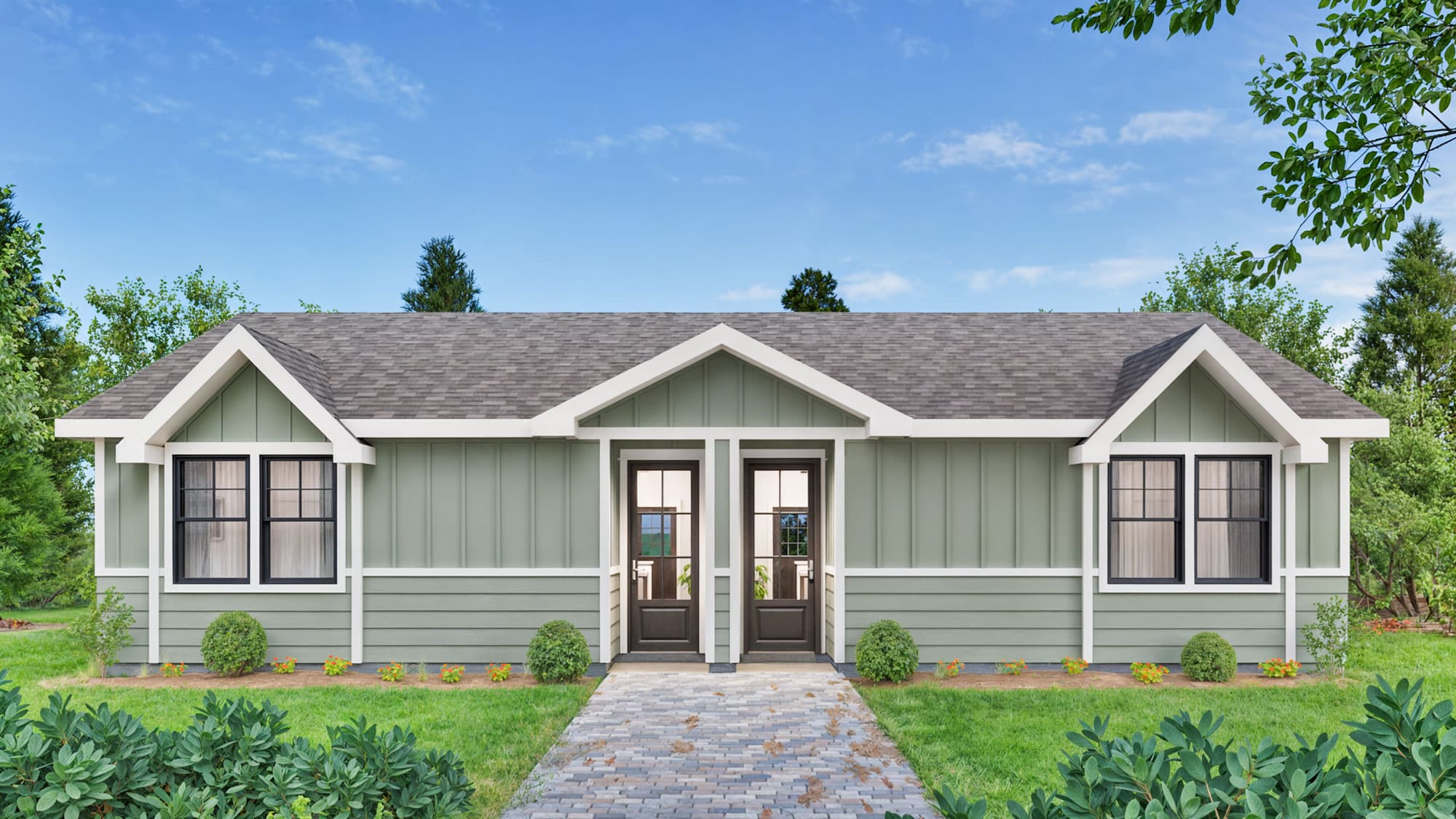

✔️ Craftsman-style exterior with board & batten and horizontal lap siding
✔️ Monolithic slab foundation, 9′ ceilings, and 6/12 roof pitch
Basic Details
Garage (sf): 0
Front Porch (sf): 12 ea.
Total Porch (sf): 24
Total Area (sf): 1,254
Each Unit (sf): 627 ea.
Primary Style: Ranch
Secondary Style: Country
Structure Details
Foundation Type: Monolithic Slab
Wall Type: 2×6 Exterior
Primary Roof Type: Composite Shingle
Primary Roof Pitch: 9/12 and 2/12
Exterior Wall Materials: Horizontal Lap and Board and Batten
Interior Details
Ceiling Height: [Main Level] 10′-0″
Kitchen Features: Kitchen Island
Secondary Rooms: Utility
Garage Details
Garage Bays: 0
What's Included

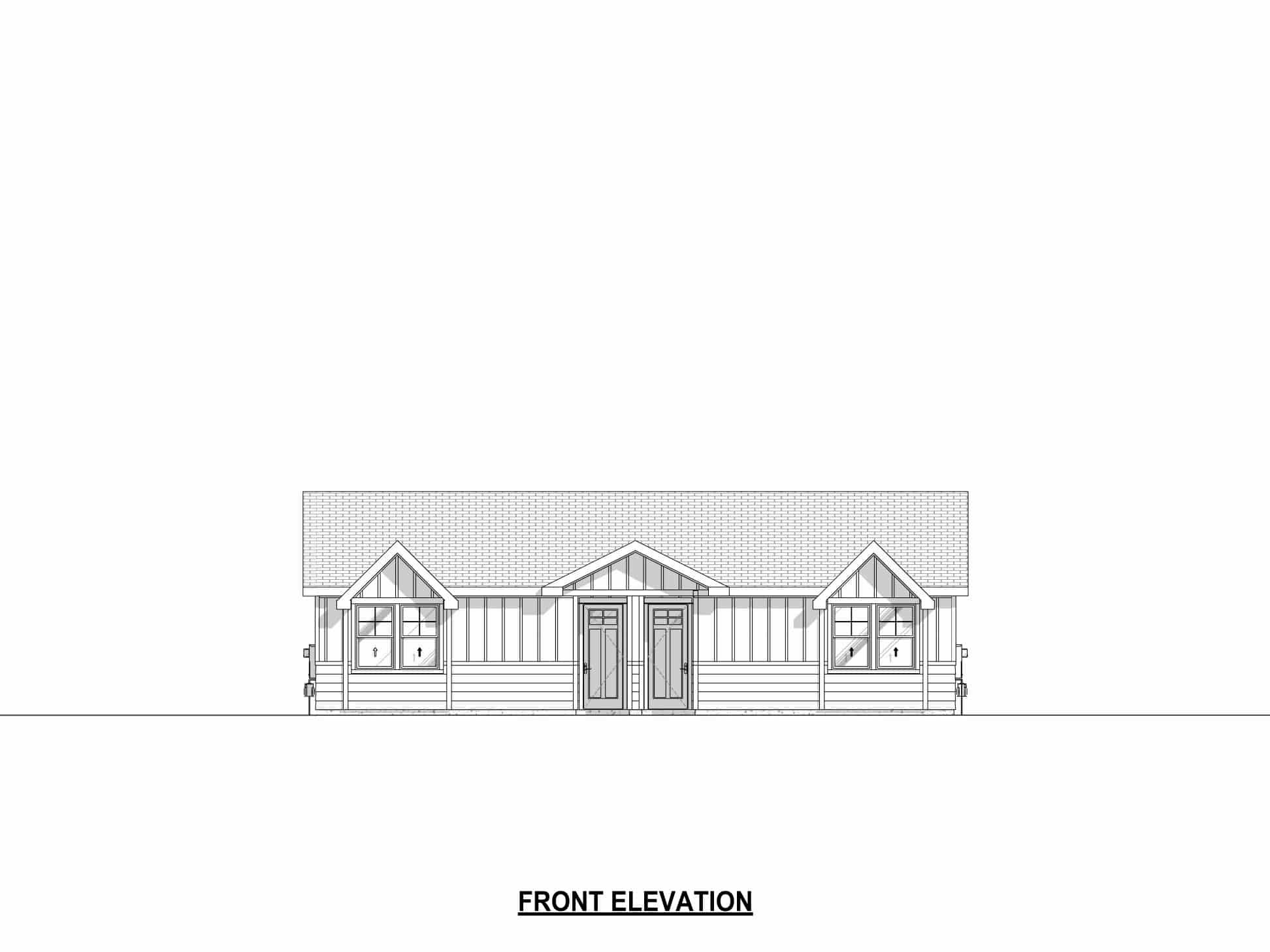

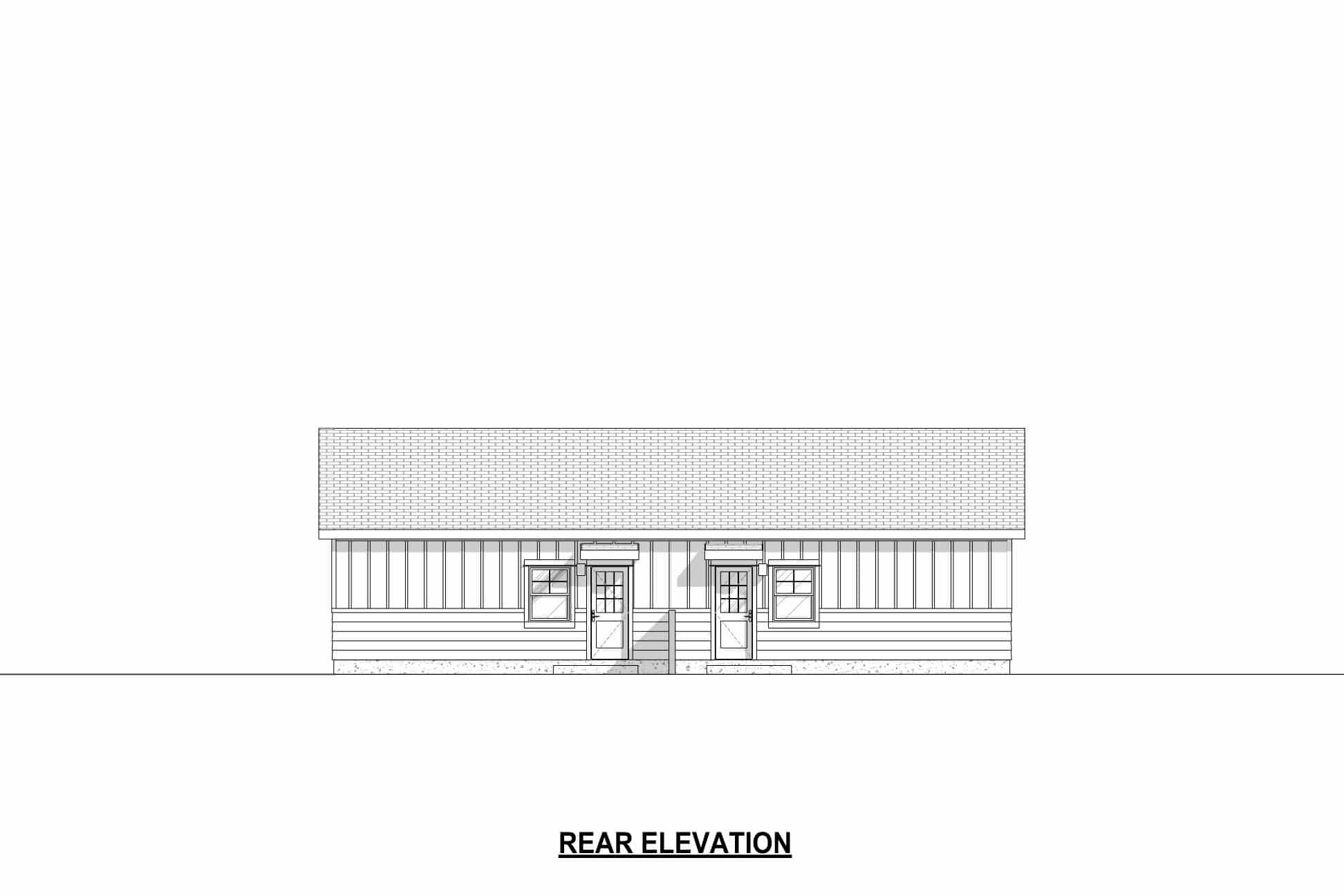

2. Elevations

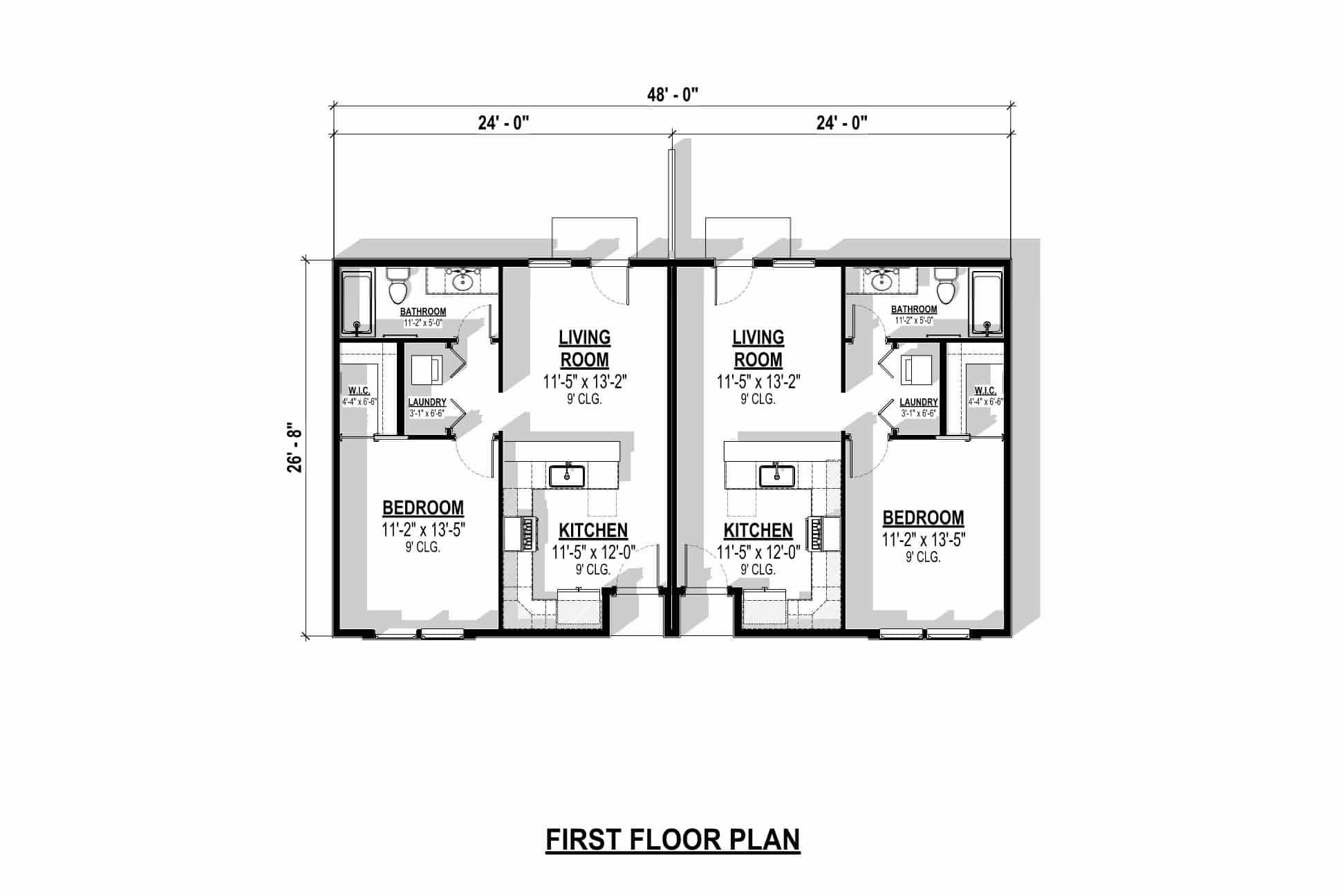

3. Floor Plan
4. Sections & Interior Elevations
5. Lighting Plan
6. Ceiling Details
7. Schedules
